What is the Difference Between DVR and NVR? – A Complete Guide for 2025
Difference Between DVR and NVR: In today’s world, security and surveillance have become essential—whether it’s for homes, offices, shops, or large commercial establishments. When it comes to CCTV systems, two terms often dominate the conversation: DVR (Digital Video Recorder) and NVR (Network Video Recorder).
Both are powerful systems designed for video recording and monitoring, but they differ significantly in technology, setup, camera compatibility, and performance.
In this detailed guide, you’ll understand exactly what makes DVR and NVR different, their advantages, disadvantages, and which one is best suited for your needs in 2025.
🧠 1. Understanding the Basics – What Are DVR and NVR?
Before we dive into technical differences, it’s important to understand the core purpose and working principle of both DVR and NVR systems. Although both are designed to record, store, and manage video footage from security cameras, they handle the process in very different ways.
🔹 DVR (Digital Video Recorder)
A DVR system is traditionally used with analog CCTV cameras. These cameras capture raw analog video signals that travel through coaxial cables (usually BNC connectors) directly into the DVR unit. Once the signal reaches the DVR, it’s digitized, processed, and stored on a hard drive for playback or monitoring.
In simpler terms:
The DVR is responsible for converting and compressing analog footage into a digital file that can be viewed, stored, or transmitted over the network.
✅ Key Characteristics of a DVR System:
- Works with analog cameras
- Uses coaxial cables for transmission
- Requires separate power supply for each camera
- Video signal is processed at the DVR
- Usually more budget-friendly
📺 Example Use Case:
If you have an older CCTV setup or need a simple home or small business security solution with limited cameras, a DVR system is practical, reliable, and cost-efficient.
🔹 NVR (Network Video Recorder)
An NVR system, on the other hand, works exclusively with IP (Internet Protocol) cameras. Unlike analog cameras, IP cameras capture and process video data digitally at the source. This means the camera itself handles video compression and encoding before sending it to the NVR over a network cable (Ethernet / Cat5e / Cat6).
Because the footage is already digital, the NVR simply stores, organizes, and streams it. This results in higher image clarity, faster transmission, and advanced AI-driven features.
✅ Key Characteristics of an NVR System:
- Works with IP (network) cameras
- Uses Ethernet cables (RJ45) for power and data
- Supports PoE (Power over Ethernet) – one cable for both
- Video is processed at the camera, not the NVR
- Offers remote access, cloud backup, and AI features
📺 Example Use Case:
If you’re setting up a new surveillance system or need advanced capabilities like motion detection, facial recognition, or 4K resolution, an NVR is the ideal choice.
🧩 Quick Analogy:
Think of DVRs like old landline telephones—wired, reliable, and simple to use.
Whereas NVRs are like modern smartphones—smart, connected, and feature-packed.
In short:
- DVR = Analog + Local Processing
- NVR = Digital + Network-Based Processing
Both serve the same end goal—security and monitoring—but the route they take to achieve it defines their core difference.
ChatGPT can make mistakes. Check important info. See Cookie Preferences.
⚙️ 2. How DVR and NVR Work – The Core Difference
| Feature | DVR (Digital Video Recorder) | NVR (Network Video Recorder) |
|---|---|---|
| Camera Type | Analog (CCTV) Cameras | IP (Network) Cameras |
| Signal Type | Analog signal converted to digital | Digital signal (direct from camera) |
| Cable Type | Coaxial cable (BNC connector) | Ethernet cable (RJ45 connector) |
| Power Supply | Requires separate power cables for each camera | Can use PoE (Power over Ethernet) – one cable for power + data |
| Processing Location | DVR processes video | Camera processes video |
| Audio Support | Limited (depends on ports) | Often built-in with IP cameras |
| Installation Complexity | Easier and less technical | Slightly advanced; requires network setup |
| Remote Access | Limited | Advanced mobile and cloud access |
| Resolution Quality | Up to 2MP–5MP (depends on DVR) | Up to 4K or higher |
| Scalability | Limited | Highly scalable |
🏗️ 3. Installation & Setup – Which One Is Easier?
When choosing between DVR and NVR, installation plays a crucial role in determining which system fits your needs best. Both are designed to monitor and record security footage, but their installation process, wiring requirements, and configuration complexity differ significantly. Let’s explore how each setup works and which one is easier to install and maintain.
🔹 DVR Installation – Traditional but Straightforward
A DVR system follows a more manual and cable-heavy installation approach. Since DVRs work with analog cameras, each camera must be connected individually using a coaxial (BNC) cable. Additionally, every camera requires its own power source, which can make wiring slightly cluttered in large setups.
⚙️ DVR Installation Steps:
- Mount Analog Cameras – Choose desired spots for coverage (entrances, hallways, outdoor areas).
- Run Coaxial Cables – Connect each camera to the DVR using BNC cables.
- Provide Power Supply – Plug in each camera to its separate power adapter or central power box.
- Connect DVR to Display – Use HDMI or VGA cable to link the DVR to your monitor or TV.
- Install Hard Drive – Open DVR case and install a compatible surveillance-grade HDD.
- Network Setup (Optional) – Connect DVR to router for remote viewing (requires port forwarding or DDNS).
✅ DVR Installation Advantages:
- Simple for small-scale installations
- Works well with existing coaxial cabling
- Plug-and-play system—no IP configuration needed
❌ DVR Installation Drawbacks:
- More cabling required (video + power separately)
- Limited flexibility for expansion
- Longer installation time for multiple cameras
👉 Ideal For: Small offices, homes, and retail shops that want basic video surveillance without complex networking.

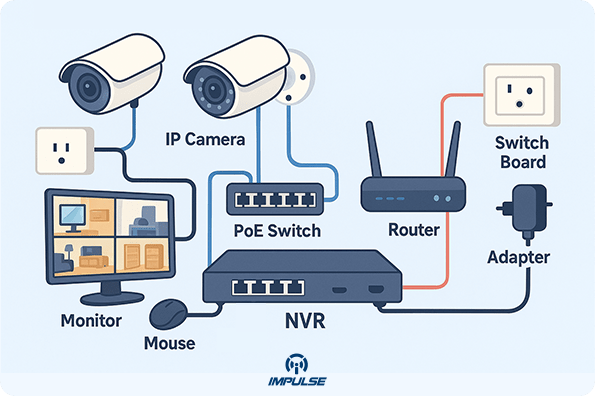

🔹 NVR Installation – Modern, Smart, and Clean
An NVR system uses IP cameras and Ethernet cables (Cat5e/Cat6), which simplifies wiring and enhances flexibility. The main advantage lies in Power over Ethernet (PoE) technology—each camera can receive both power and data through a single cable, making installation cleaner and faster.
⚙️ NVR Installation Steps:
- Mount IP Cameras – Position cameras strategically for maximum coverage.
- Connect Cameras via Ethernet Cable – Plug each camera into a PoE switch or directly into the NVR’s PoE ports.
- Automatic Detection – NVRs automatically detect and configure IP cameras connected to the same network.
- Connect NVR to Display – Use HDMI or VGA cable to connect to monitor.
- Install Hard Drive – Add an HDD for storage.
- Enable Remote Access – Link the NVR to your internet router for cloud or mobile app access.
✅ NVR Installation Advantages:
- One cable for both power and video (PoE)
- Cleaner and more professional installation
- Easy camera management via network
- Supports wireless IP cameras (Wi-Fi models)
- Effortless remote access via mobile app or web portal
❌ NVR Installation Drawbacks:
- Requires basic networking knowledge
- Higher cost for PoE switches and Cat6 cables
- May need IP configuration for large systems
👉 Ideal For: Businesses, warehouses, educational institutions, and smart homes that prefer high-definition, scalable, and modern surveillance.
⚖️ DVR vs NVR Installation Comparison
| Feature | DVR Installation | NVR Installation |
|---|---|---|
| Cable Type | Coaxial cable + power wire | Single Ethernet cable (PoE) |
| Wiring Complexity | High – two cables per camera | Low – one cable per camera |
| Network Setup | Optional, for remote access | Required for connectivity |
| Setup Time | Moderate to long | Shorter and more flexible |
| Aesthetic Appeal | Cable-heavy setup | Clean and organized |
| Technical Skill Required | Minimal | Basic networking knowledge |
🧩 Real-World Example:
Imagine setting up 8 cameras in your office:
- With a DVR system, you’ll need 16 cables (8 for video + 8 for power).
- With an NVR system (PoE), you only need 8 cables total—each carrying both power and data.
That’s nearly 50% less cabling, making NVR setups not only faster but also easier to maintain.
🧠 Expert Insight:
If you’re starting fresh and value ease of management, neat wiring, and future scalability, the NVR system is the clear winner in installation convenience. However, if your property already has coaxial wiring installed, a DVR upgrade will save cost and time.
🏁 Final Verdict on Installation:
- DVR: Simpler for basic users and existing analog setups.
- NVR: Easier for modern installations, cleaner wiring, and future upgrades.
💬 Pro Tip: If you’re planning to expand your security system in the future, go for NVR. It’s not only easier to manage but also compatible with smart features like motion tracking, face recognition, and cloud storage.
🧩 4. Image Quality Comparison
NVR systems clearly outperform DVRs in terms of image quality. Since NVRs record directly from digital IP cameras, there’s no loss in signal quality over distance.
DVR systems, however, rely on analog signals which can degrade over long cable runs.
| Aspect | DVR | NVR |
|---|---|---|
| Clarity | Moderate (depends on camera) | High-definition (1080p to 4K) |
| Color Accuracy | Average | Excellent |
| Night Vision | Good | Superior with AI enhancement |
| Frame Rate | Up to 15–25 FPS | Up to 30–60 FPS |
🌐 5. Remote Viewing and Mobile Access
Both systems can provide remote access, but the experience differs.
- DVR Remote Access: Requires manual configuration like port forwarding or DDNS setup.
- NVR Remote Access: Easier with cloud connectivity, mobile apps, and QR code scanning.
Modern NVRs from brands like Hikvision, Dahua, and CP Plus even allow users to receive real-time alerts, motion detection notifications, and playback videos through mobile apps with end-to-end encryption.
💡 6. Power Management – DVR vs. NVR
⚙️ DVR System Power:
Each analog camera needs a separate power source, increasing cable clutter and installation time.
⚙️ NVR System Power:
With PoE (Power over Ethernet) technology, NVR systems use a single cable for both power and data—reducing mess and simplifying maintenance.
🔐 7. Security & Data Encryption
NVR systems are more secure because they use digital signals and advanced encryption protocols. IP cameras often come with password protection, firmware updates, and end-to-end encryption for data safety.
DVRs are more vulnerable since analog video feeds can be intercepted with physical access to cables.
🧠 8. Smart Features & AI Integration
If you’re looking for smart surveillance, NVR wins hands down.
NVR Smart Features:
- Motion & face detection
- Line crossing & intrusion alerts
- Human & vehicle recognition
- Remote playback & cloud backup
DVR Limitations:
- Basic motion detection only
- Limited smart features due to analog camera constraints
💸 9. Cost Comparison – Which Is More Budget-Friendly?
| Aspect | DVR System | NVR System |
|---|---|---|
| Initial Cost | Lower | Higher |
| Cabling Cost | Higher (power + video cables) | Lower (single Ethernet cable) |
| Maintenance Cost | Moderate | Low (due to fewer cables) |
| Future Upgrades | Limited | Scalable and future-proof |
If you’re on a tight budget or upgrading an existing analog setup, a DVR is more cost-effective.
However, for long-term investment and future scalability, NVR is the smarter choice.
🏆 10. DVR vs. NVR – Pros and Cons Summary
🔹 DVR Pros:
- Affordable and easy to set up
- Works with existing analog cameras
- Reliable for small-scale setups
🔹 DVR Cons:
- Lower image quality
- More cabling required
- Limited remote and AI features
🔹 NVR Pros:
- Superior image and audio quality
- Fewer cables with PoE
- Advanced smart features and cloud access
- Easier expansion for large systems
🔹 NVR Cons:
- Higher initial cost
- Requires basic networking knowledge
🧭 11. Which One Should You Choose?
Here’s a quick decision guide:
| Requirement | Recommended System |
|---|---|
| Existing analog setup | DVR |
| High-quality video (HD/4K) | NVR |
| Smart analytics (AI, face detection) | NVR |
| Low-cost home surveillance | DVR |
| Large commercial installation | NVR |
| Easy future expansion | NVR |
👉 Final Verdict:
If you want basic, affordable surveillance, go with DVR.
If you prefer modern, intelligent, and future-ready monitoring, NVR is the clear winner.
🧰 12. Popular Brands Offering DVR and NVR Systems in 2025
Here are some trusted global brands you can consider:
🔸 Hikvision
- Known for cutting-edge AI-powered NVRs.
- Excellent mobile app and software support.
🔸 Dahua Technology
- Strong balance between price and performance.
- Ideal for both residential and business setups.
🔸 CP Plus
- India’s top-selling CCTV brand.
- Great after-sales service and affordability.
🔸 Honeywell, Uniview, Bosch
- Reliable for high-end enterprise installations.
🧩 13. Future of Video Surveillance – The Shift Toward IP Systems
The global surveillance industry is moving rapidly toward IP-based NVR systems.
By 2025 and beyond, most new installations will favor NVRs due to:
- 4K and AI camera support
- Smart analytics
- Cloud storage and mobile integration
- Easier scalability
However, DVR systems will continue to serve smaller users, especially in rural or low-bandwidth areas.
🌟 14. Final Thoughts – Difference Between DVR and NVR
Choosing between DVR and NVR depends on your budget, existing setup, and future goals.
If you value simplicity and cost-effectiveness, DVRs are still relevant.
But if you prioritize quality, smart features, and flexibility, investing in an NVR system will future-proof your security.
Whether it’s for your home, office, school, or factory, understanding these differences ensures you make an informed decision that protects your property efficiently.
Frequently Asked Questions (FAQ) – DVR vs NVR
Below are some of the most commonly asked questions that help clear any confusion between DVR (Digital Video Recorder) and NVR (Network Video Recorder) systems. These answers will help you make a smarter decision for your CCTV installation in 2025.
🔹 Q1. What is the main difference between a DVR and an NVR?
Answer:
The key difference lies in how video data is processed and transmitted.
- A DVR system records analog video from traditional CCTV cameras through coaxial cables and converts it into digital format.
- An NVR system works with IP cameras that send digital video over Ethernet cables directly to the recorder.
Simply put, DVR = Analog, while NVR = Digital.
🔹 Q2. Which system offers better video quality — DVR or NVR?
Answer:
NVR systems provide superior video quality, often supporting Full HD, 2K, 4K, and even 8K resolution. DVR systems are limited to analog video signals and may not deliver the same level of clarity or color accuracy as modern NVRs.
🔹 Q3. Can I use DVR cameras with an NVR system?
Answer:
No. Analog cameras used in DVR systems are not compatible with NVRs, as NVRs require IP-based digital cameras.
However, some hybrid recorders (known as XVRs) can support both analog and IP cameras, offering flexibility for mixed setups.
🔹 Q4. Is NVR installation easier than DVR?
Answer:
Yes, especially if you use PoE (Power over Ethernet) cameras. NVR systems require only one cable per camera for both power and data, making installation cleaner and faster. DVR systems, on the other hand, require two separate cables for power and video.
🔹 Q5. Can I access DVR or NVR footage remotely on my phone?
Answer:
Yes, both DVR and NVR support remote viewing through mobile apps or web browsers.
However, NVRs generally offer a smoother experience with cloud connectivity, live alerts, and smart playback.
Brands like Hikvision, Dahua, and CP Plus have excellent mobile apps for remote monitoring.
🔖 SEO Keywords:
dvr vs nvr difference, nvr vs dvr, what is the difference between dvr and nvr, dvr vs nvr cctv, analog vs ip camera, best cctv system 2025, dvr or nvr which is better, cctv recorder types, security camera system comparison, hikvision nvr, cp plus dvr, dahua cctv setup
Discover more from Mithu Tech
Subscribe to get the latest posts sent to your email.
